Conveyor Line

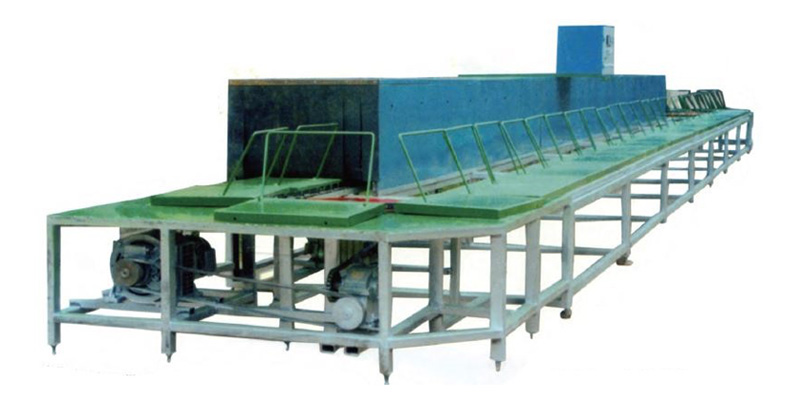

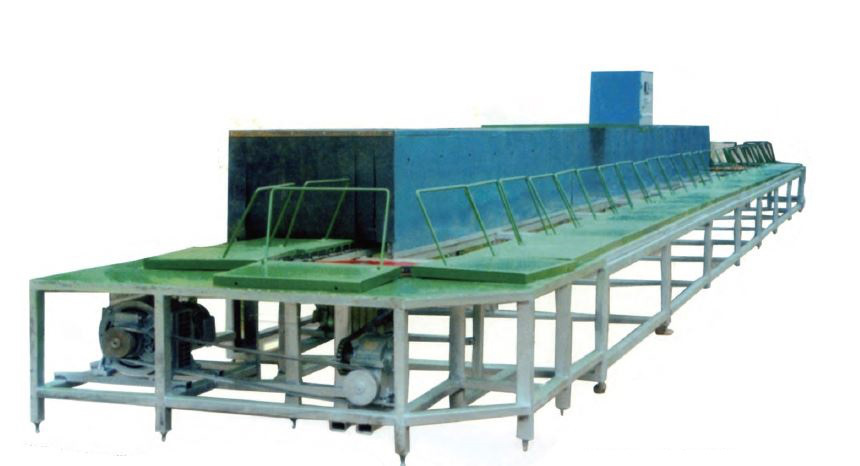

Circular Conveyor Line (Heated Type)
Circular Conveyor Line (Heated Type)

Our different conveyor line types are customizable according to user needs. The heating method includes fuel and electric heating, or electric heating only.

Specifications
Model JHL-60 JHL-75 JHL-80 JHL-90 JHL-50 JHL-60 JHL-80
Dimensions(L*W*H) 18950*1980*1280mm 23450*1980*1280mm 24950*1980*1280mm 27950*l980*1280mm 13665*198O*1280mm 16185*198O*128Omm 21165*1960*1280mm
Tool carts 600*500 600*500 600*500 600*500 500*500 500*500 500*500
Workstation number 60 75 80 90 60 60 80
Sprocket center distance 16900 21400 22900 25900 11510 14010 19010
Drying section number 7 9 9 11 6 7 8
Heating method Thermal infrared/fuel Thermal infrared/fuel Thermal infrared/fuel Thermal infrared/fuel Thermal infrared/fuel Thermal infrared/fuel Thermal infrared/fuel
Heating equipment Tube heater/fuel heater Tube heater/fuel heater Tube heater/fuel heater Tube heater/fuel heater Tube heater Tube heater Tube heater
Power supply 23, 6 32 32 40 22 25 30
Note:
  • The JHL series can be heated by fuel and electricity, while the JHLD series can only be heated by electricity.
  • The machines can be customized according to customer requirements.

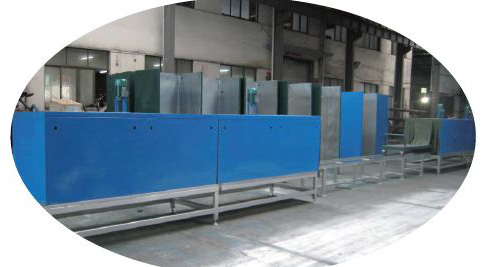

Linear Conveyor Line
Linear Conveyor Line
Disc Conveyor Line
Disc Conveyor Line

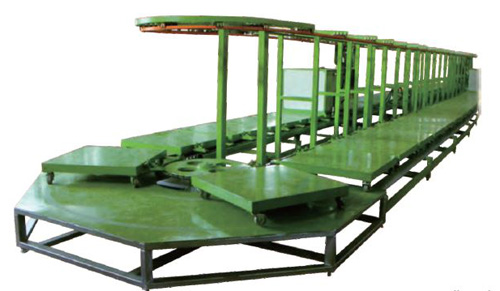

Circular Conveyor Line (Water Heated )
Circular Conveyor Line (Water Heated )
